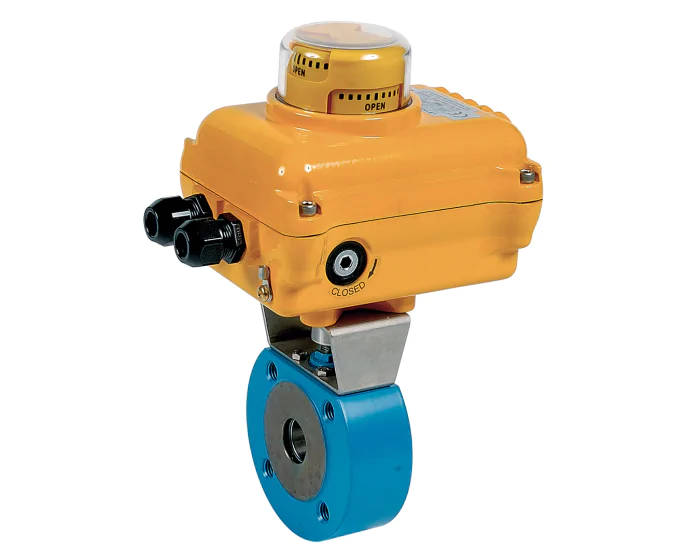

The ADLER 720 (FA1/FA2) ball valve has an A105 steel body and PTFE seats. Full bore. It is actuated with an SA/NA electric actuator. TS: 200°C. Wafer PN16/40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 304 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN100 - 4'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 154.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A105 (1.0460) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE - Graphite |
| PS (bar) | 16 |
| Power (W) | 40 |
| Connections | Between flanges PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 28 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 24.0 |
| Voltage | 230 V AC |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 15 | 273701023010 | S1003720 |
€704.61
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 20 | 273702023010 | S1003721 |
€690.61
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 25 | 273703023010 | S1003722 |
€648.16
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 32 | 273704023010 | S1003723 |
€687.14
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 40 | 273705023010 | S1003724 |
€777.57
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 40 | 273705023011 | S1003725 |
€777.57
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 50 | 273706023010 | S1003726 |
€907.80
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 65 | 273707023120 | S1003727 |
€1,499.97
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 80 | 273708023130 | S1003728 |
€1,803.03
(excl. btw)
|
add to cart |
| Between flanges PN16 Carbon steel A105 (1.0460) Full Wafer 100 | 273709023150 | S1003729 |
€2,338.86
(excl. btw)
|
add to cart |
